| Item | Specification | |
| Printing method | Direct thermal line printing | |
| Print out detection | Paper end sensors function | |
| Paper loading way | easy paper loading | |
| Paper width | 80mm | |
| Print width | 72mm | |
| Resolution ration | 576dots/line | |
| Life of printing head | 6,000,000 character lines | |
| Printing speed | 60mm/s(when the character ratio is 25%) | |
| Character | 6*8dots,8*16dots,12*24dots | |
| Chinese character library | GB2312,16*16dots,24*24dots | |
| Outline dimension | 106mm*81mm*40.5mm | |
| Installation dimension | 100mm*75mm | |
| Paper supplied | Thermal roll paper(80mm,30mmΦ） | |
| Interface | Serial RS-232, TTL/ Parallel/ USB interface | |
| Input power | DC 5V, 3A/ 8V,24W | |
| Operating temperature | 5℃ ~ 50℃ | |
| Storage temperature | – 20℃ ~ 60℃ | |
| Operating humidity | 10% ~ 80% | |
| Storage humidity | 10% ~ 90% | |

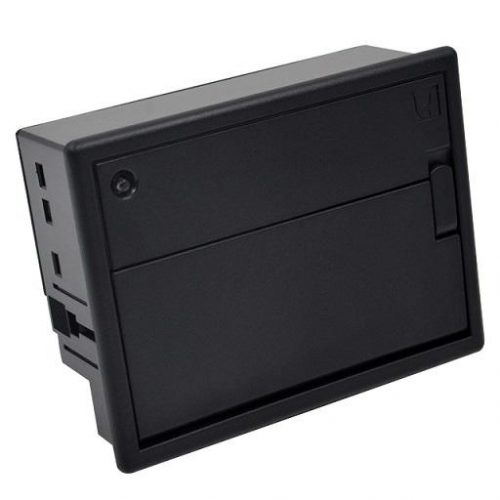

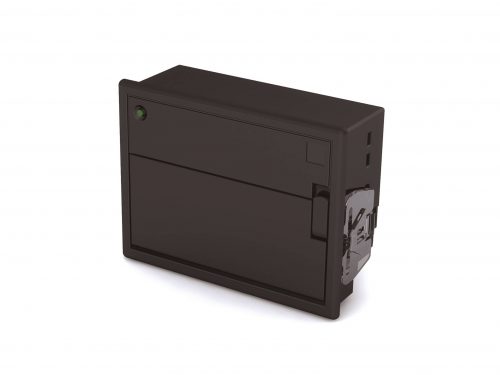

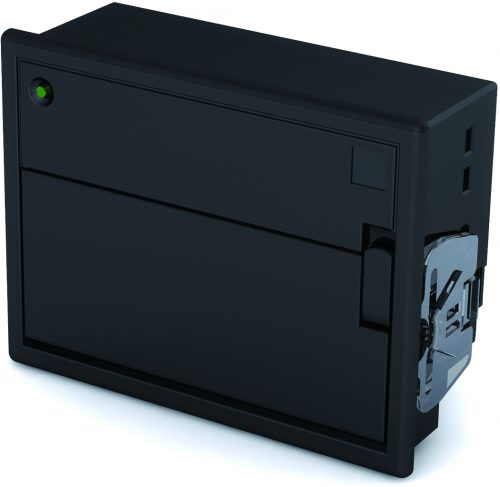

3 inch Thermal Panel Receipt Printer 80mm Paper Width –E19
$50.00
Features
– Stylish, delicate and elegant appearance
– Paper end sensors and self-motion memory printing function
– Very silent printing thru direct thermal printing method
– Abundant figure/ curves/ characters print function
– Add coordinate curve printing function
– Serial RS-232C/ TTL, Parallel/ USB interface
– Stable performance
– Easier paper loading
